2014 - Mazda6 - Transmission/Transaxle

R-3-5 BRAKE [FW6A-EL]

Purpose/Function

• The R-3-5 brake operates in 3GR, 5GR and in reverse to lock the reduction internal gear against rotation.

Construction

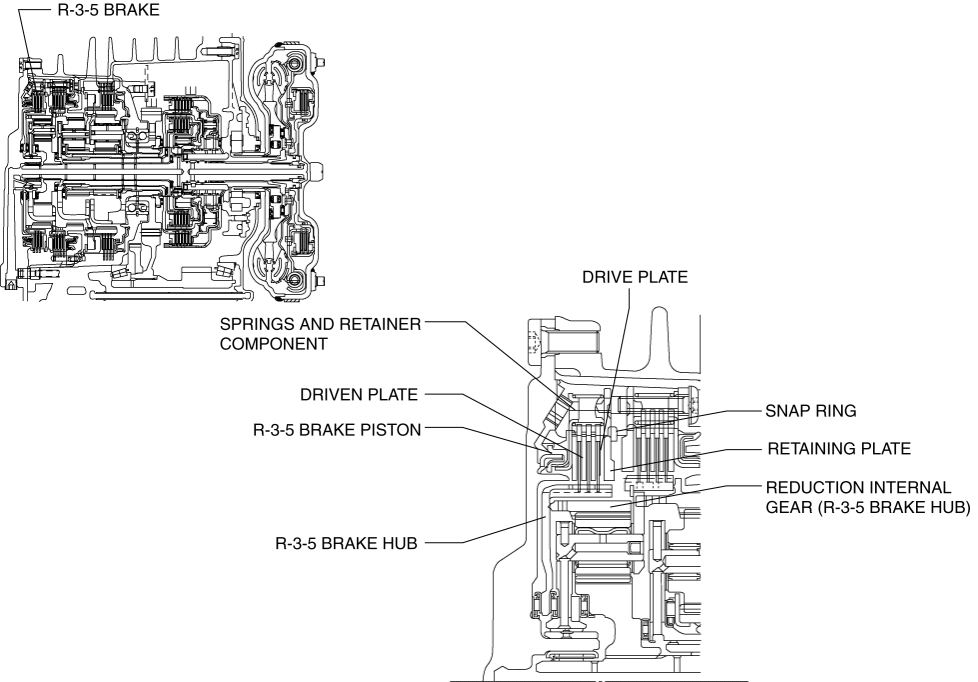

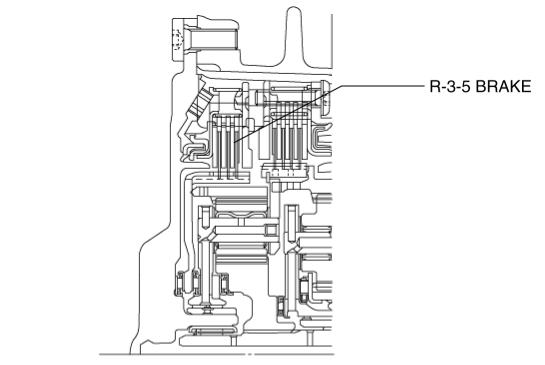

• The R-3-5 brake consists of the following parts shown in the figure.

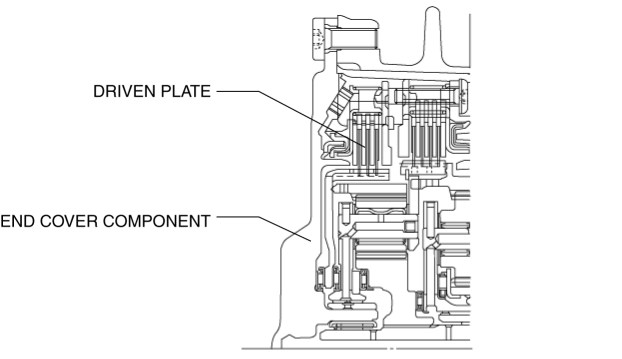

• The driven plate of the R-3-5 brake does not rotate because it is connected to the end cover component.

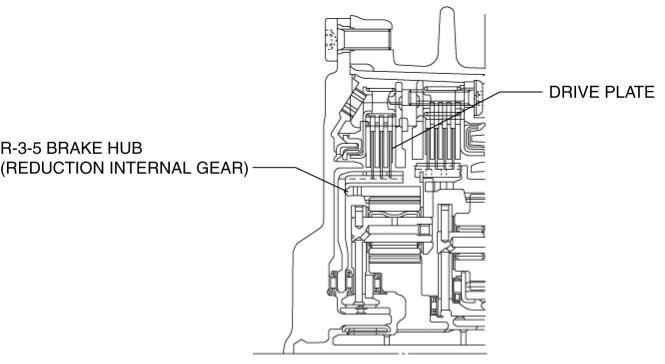

• The R-3-5 brake drive plate is engaged with the R-3-5 brake hub and reduction internal gear, and locks the reduction internal gear.



• For the R-3-5 brake piston, a compact and highly reliable bonded seal piston has been adopted in which the piston and seal are molded together.

Operation

• When hydraulic pressure is applied to the R-3-5 brake piston, the drive plate and driven plate are pressure bonded to lock the reduction internal gear.
