2014 - Mazda6 - Brakes

POWER BRAKE UNIT

Purpose/Function

• A 9-inch, single diaphragm type power brake unit has been adopted, achieving compatibility between high braking performance and excellent brake feeling.

Construction

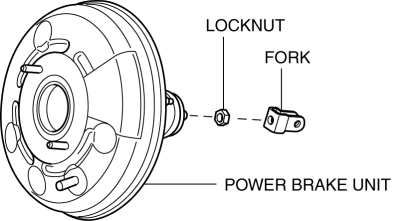

• Except for the fork and locknut, the power brake unit cannot be disassembled. Therefore, if there is any malfunction in the power brake unit, replace the power brake unit without disassembling.



Operation

• The depression force of the brake pedal is increased using the vacuum from the vacuum pump, and the force is transmitted to the master cylinder.
