2014 - Mazda6 - Engine

MAIN RELAY [SKYACTIV-G 2.5]

Purpose/Function

• Supplies power to each part.

• Supplies battery voltage to each part based on the signals from the PCM even though the ignition is switched on or off.

Construction

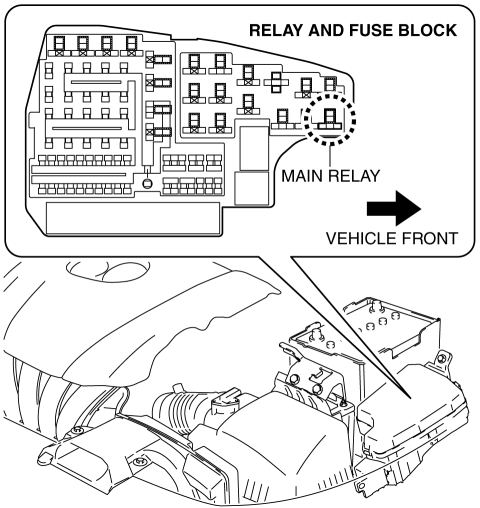

• Installed in the relay and fuse block.



Operation

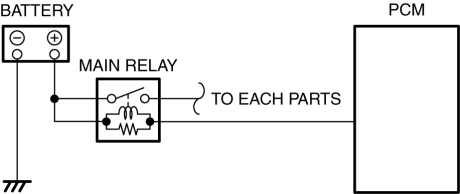

• After the contact point is on battery voltage is supplied to the coil based on the signals from the PCM.



Fail-safe

• Function not equipped.
