THROTTLE BODY [SKYACTIV-G 2.5]

Purpose, Function

Opens/closes the throttle valve to adjust the amount of air supplied to the cylinder.

Opens/closes the throttle valve according to the control signal from the PCM.

Construction

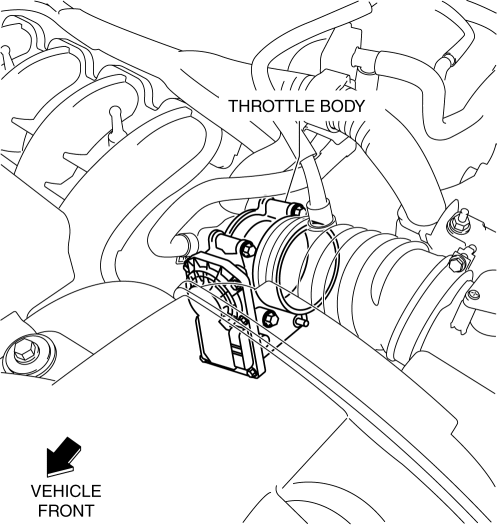

The throttle body is installed to the intake manifold.

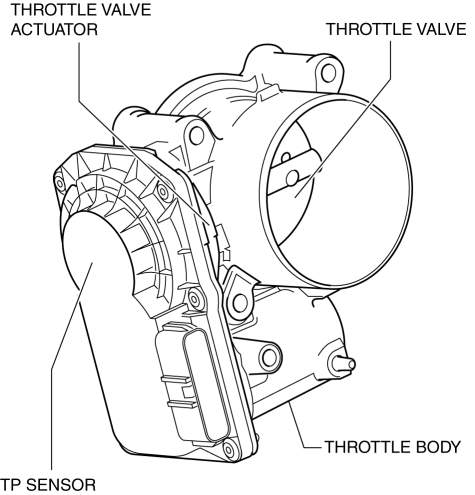

The throttle body consists of a throttle valve, throttle valve actuator, TP sensor, and return spring.

For the throttle position sensor, refer to CONTROL SYSTEM. (See THROTTLE POSITION (TP) SENSOR [SKYACTIV-G 2.5].)

Operation

The throttle valve actuator opens/closes the throttle valve according to the control signal from the PCM. If there is a malfunction in the throttle valve actuator, the throttle valve is closed by the return spring in the throttle body.

For the drive-by-wire control, refer to CONTROL SYSTEM. (See DRIVE-BY-WIRE CONTROL [SKYACTIV-G 2.5].)

Fail-safe


DTC	Fail-safe
P2101:00	Stops the idle air control. Stops the drive-by-wire control and sets to a throttle valve opening angle necessary for minimum driveability.
P2107:00	Stops the idle air control. Stops the drive-by-wire control and sets to a throttle valve opening angle necessary for minimum driveability.
P2110:00	Stops the idle air control. Stops the drive-by-wire control and sets to a throttle valve opening angle necessary for minimum driveability.
P2112:00	Stops the idle air control. Stops the drive-by-wire control and sets to a throttle valve opening angle necessary for minimum driveability.
P2119:00	Restricts the upper limit of the engine speed.
