The DLC-2 located in the driver compartment is a service connector defined by OBD-II regulations.
-
The following are functions for each terminal.
Function for allowing both the PCM and external tester to receive and send data.
The DLC-2 has been adopted as the communication medium.
The types of data which the PCM and external tester can receive and send using the external tester communication function include the following items:
Recording of engine control system information in the PCM.
Data related to exhaust emission such as input/output signals, the PCM-calculated values and system status.
—: Not applicable

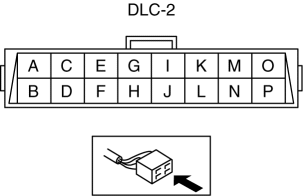

The DLC-2 located in the driver compartment is a service connector defined by OBD-II regulations.
The following are functions for each terminal.
| Terminal | Function |
| A | Battery positive voltage |
| B | — |
| C | — |
| D | — |
| E | CAN communication line LO (HS) |
| F | CAN communication line HI (HS) |
| G | — |
| H | Ground (signal) |
| I | — |
| J | Ground (chassis) |
| K | CAN communication line LO (MS) |
| L | CAN communication line HI (MS) |
| M | — |
| N | — |
| O | — |
| P | — |
