2014 - Mazda6 - Engine

ON-BOARD DIAGNOSTIC OUTLINE [SKYACTIV-G 2.5]

Features

The PCM performs self-diagnosis to check for malfunctions in the engine control system.

If a malfunction occurs in the engine control system, the driver is notified.

On-board diagnosis can be performed easily using an external tester.

To meet the OBD-II regulations	Diagnostic test modes adopted
Improved serviceability	DTCs adopted KOEO/KOER self test function adopted PID/DATA monitor function adopted Active command modes function adopted

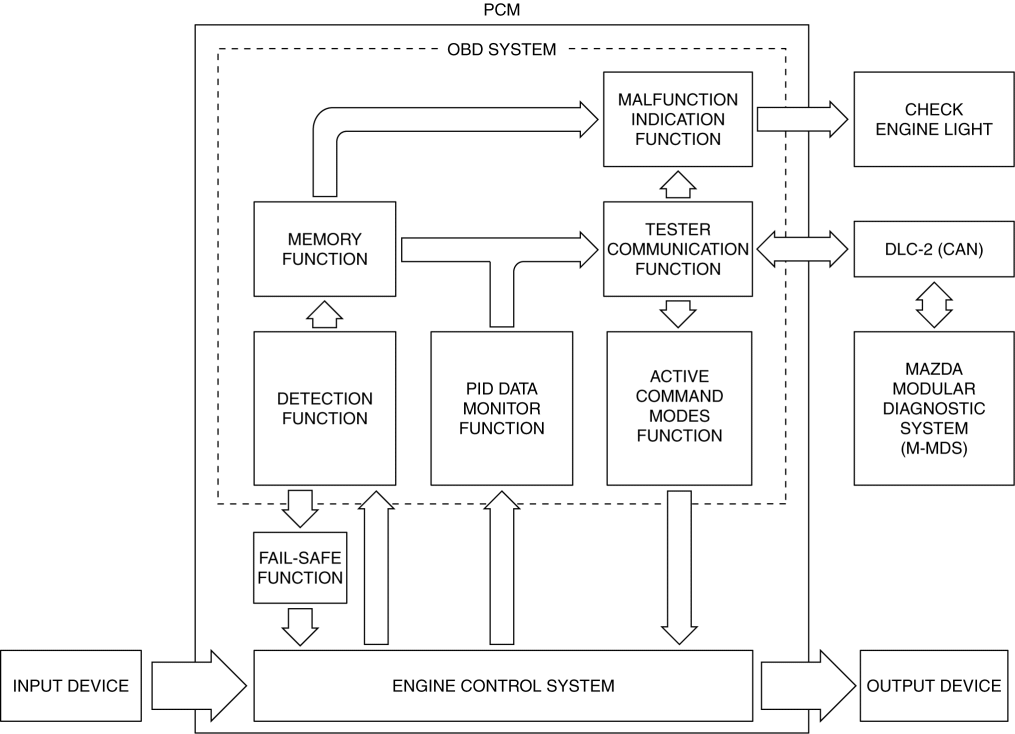

Block Diagram
