1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)
2. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.
3. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull up the main fuse cover in the direction of the arrow (2) shown in the figure to detach the main fuse cover tab from the main fuse.
4. Remove the main fuse cover.

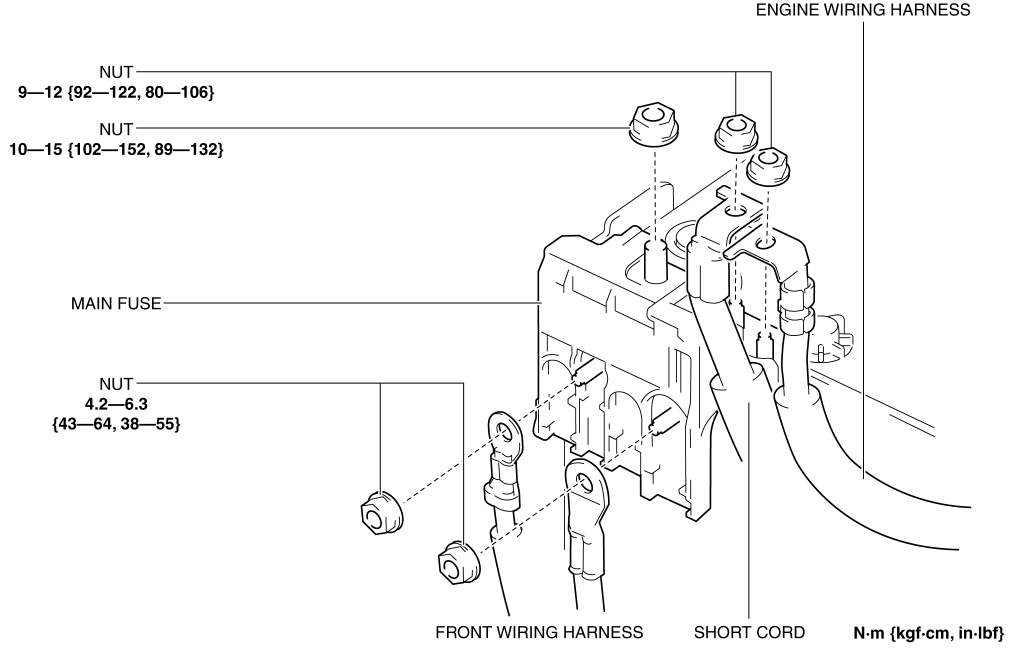

5. Remove the nuts.Without i-ELOOP
With i-ELOOP
6. Remove the main fuse.
7. Install in the reverse order of removal.
