2014 - Mazda6 - Body and Accessories

FRONT UNDER COVER No.1 REMOVAL/INSTALLATION

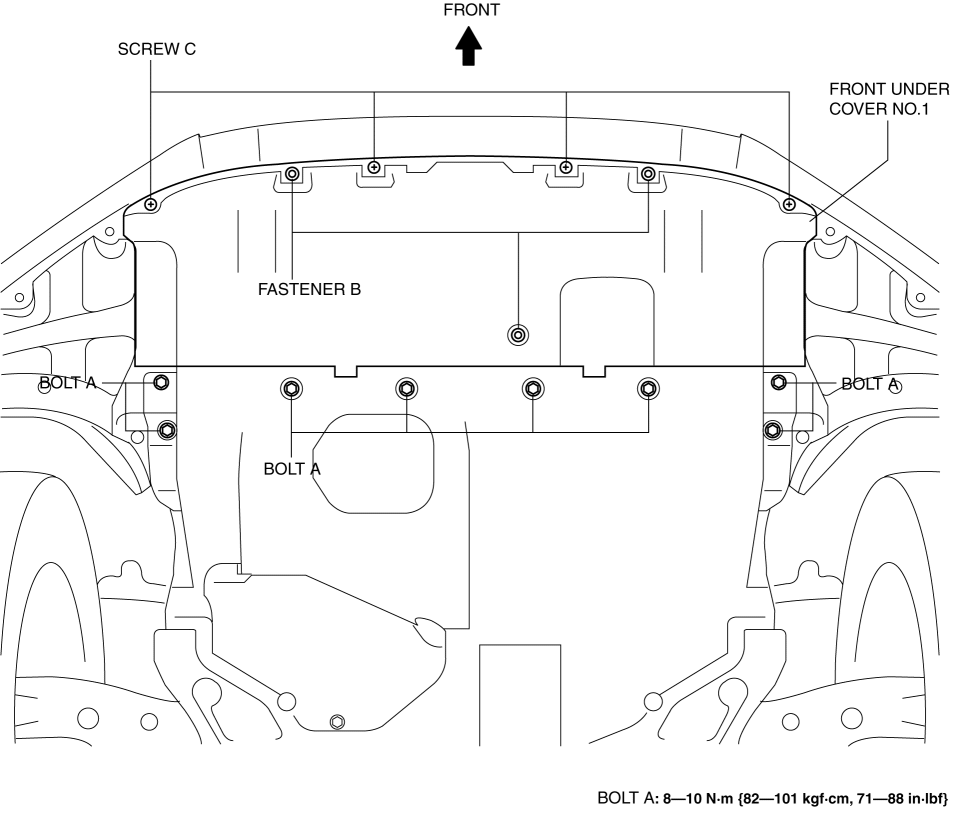

1. Remove bolts A.

2. Remove fasteners B.
3. Remove screws C.

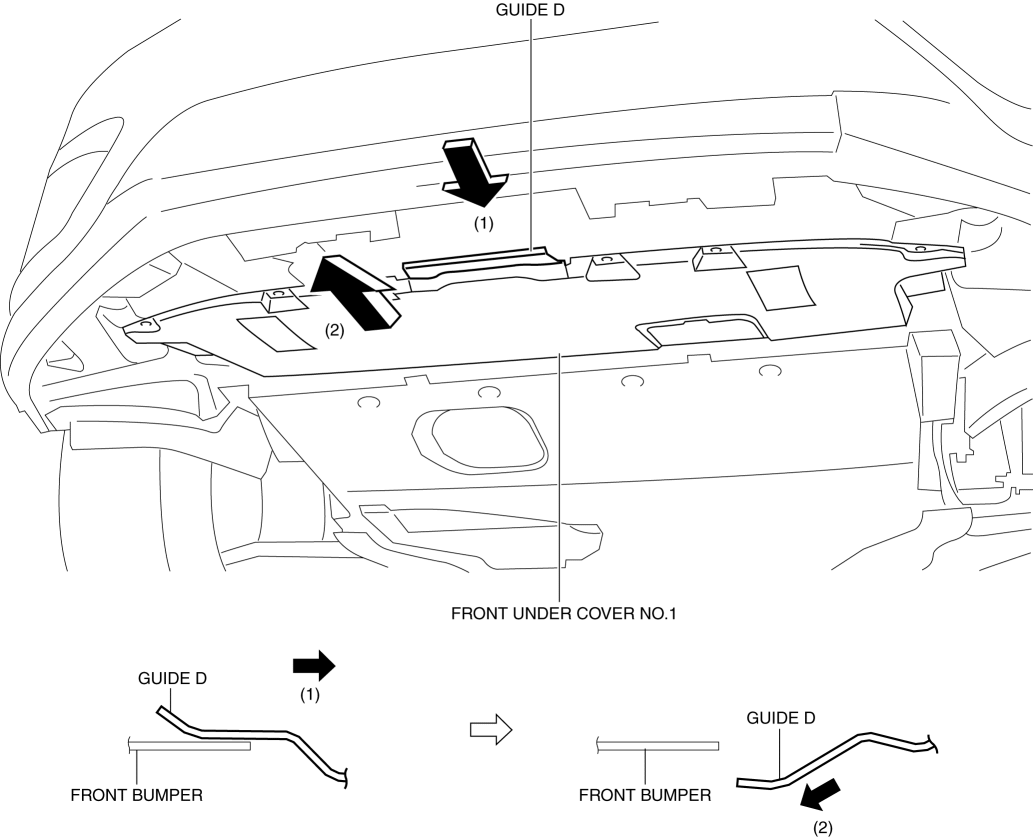

4. Remove the front under cover No.1 in the direction of the arrow in the order of (1), (2) shown in the figure while detaching guide D.

5. Install in the reverse order of removal.
