WARNING:
Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
NOTE:
Double-sided adhesive tape has already been attached to the new rear sash molding.
1. When installing a new rear sash molding, follow the procedure below:a. Carefully remove the adhesive remaining on the body using a razor blade.b. Remove any grease or dirt from the adhesion surface of the body.

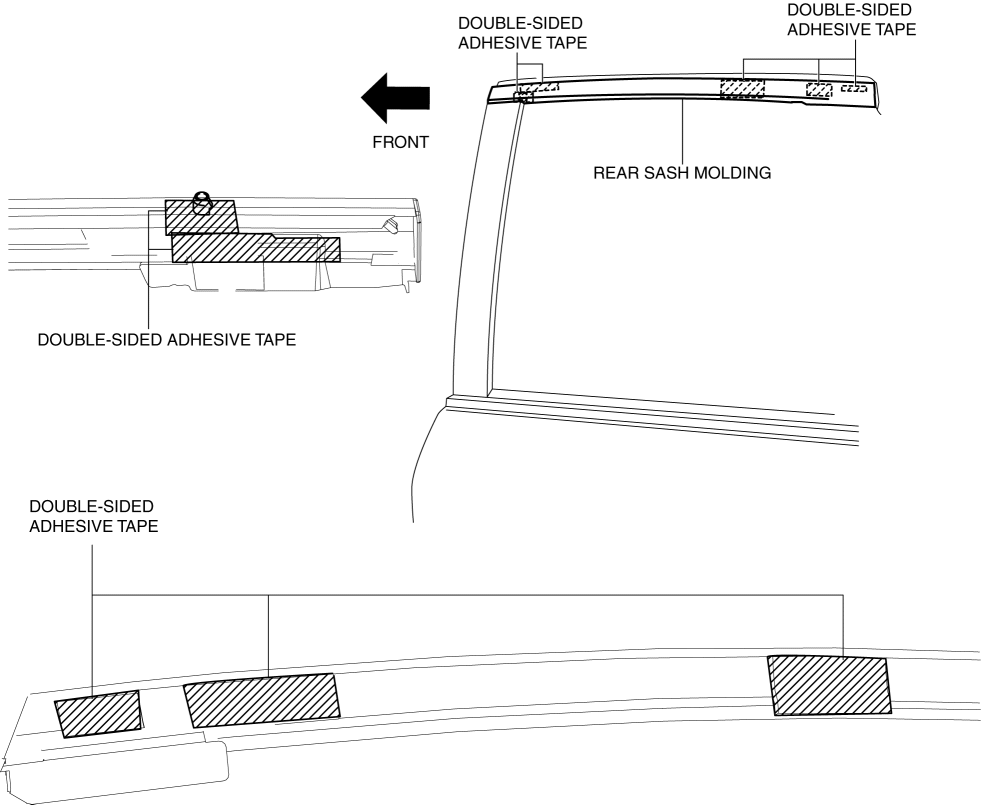

2. Remove the adhesive remaining on the rear sash molding and the body using a razor blade.a. Remove any grease or dirt from the adhesion surface of the rear sash molding and the body.b. Apply primer to the bonding area of the rear sash molding.c. Affix double-sided adhesive tape to the rear sash molding as shown in the figure.
NOTE:
As for the double-sided adhesive tape, use 3M GT7120 or equivalent.
3. Peel off the backing of the double-sided adhesive tape.
4. Hook tabs A to the body in the position where clip B aligns with the sash holes.
5. Press the rear sash molding in the direction of the arrow and install clip B to the body.CAUTION:
Do not press the rear sash molding in any place other than the rubber areas.
6. Press the rear sash molding from the vehicle front in the direction of the arrow and install tab C.NOTE:
After installing the rear sash molding, verify that tabs A and C are connected properly to the body.
