2014 - Mazda6 - Body and Accessories

FRONT DOOR LOCK ACTUATOR INSPECTION

1. Perform the front door glass removal preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)

3. Remove the following parts:

a. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

b. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

c. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

d. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

e. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

f. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

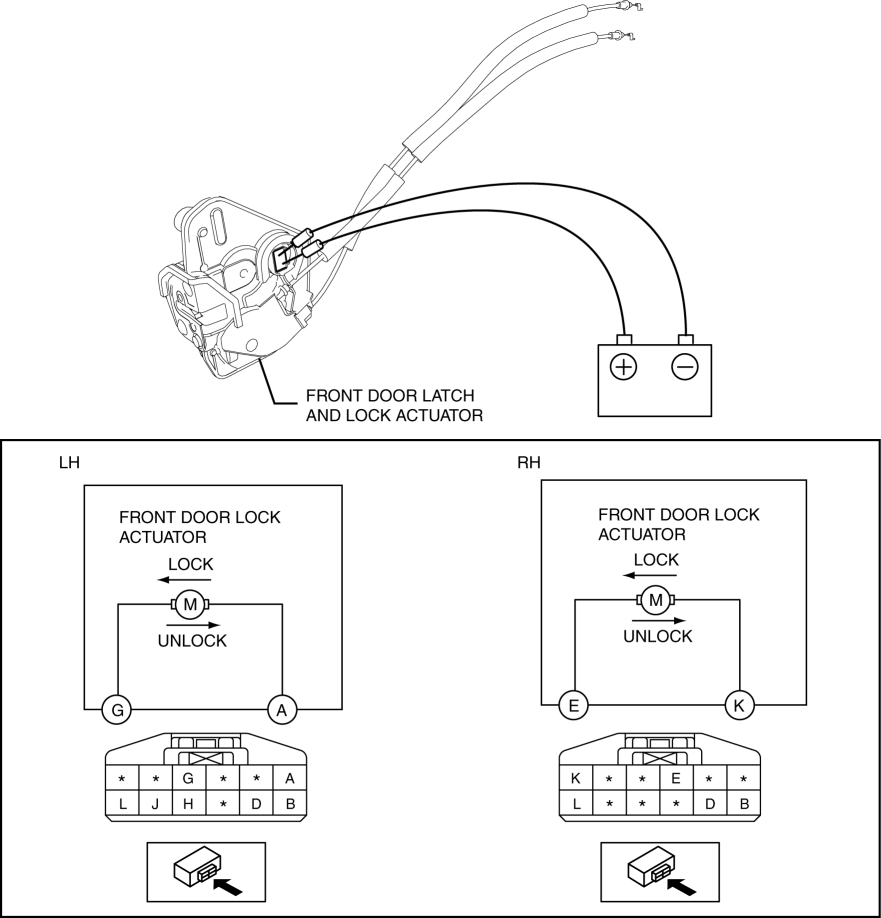

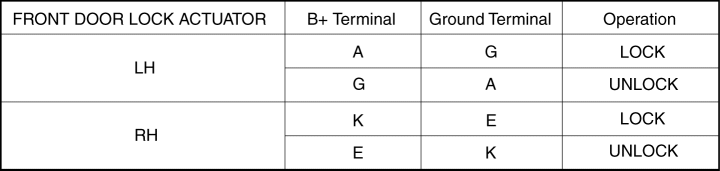

4. Apply battery positive voltage and connect the ground to the front door lock actuator terminals as indicated in the table below and verify the operation condition.

• If not as indicated in the table, replace the front door latch and lock actuator.
