2014 - Mazda6 - Steering

PRECAUTION

Intermittent Concern Troubleshooting

Vibration method

NOTE:

Inspection method for switch and/or sensor connectors or wires
1. Connect the M-MDS to the DLC-2.
2. Switch the ignition ON (engine off).

NOTE:

3. Access PIDs for the switch you are inspecting.
4. Turn the switch on manually.

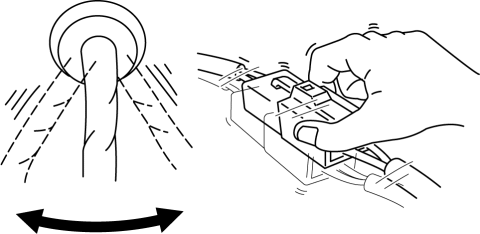

5. Slightly shake each connector or wiring harness vertically and horizontally while monitoring the PID.

Inspection method for sensors
1. Connect the M-MDS to the DLC-2.
2. Switch the ignition ON (engine off).

NOTE:

3. Access PIDs for the switch you are inspecting.
4. Vibrate the sensor slightly with your finger.

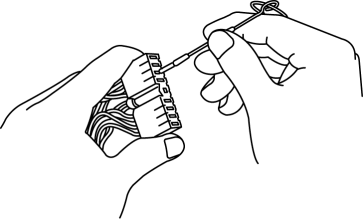

Connector terminal inspection method
1. Inspect the connection of each female terminal.
2. Insert the male terminal to the female terminal and inspect the female terminal for looseness.
