If not as indicated in the table, replace the TPMS set switch.
| Terminal | Test condition | Resistance (ohms) |
| B—C | TPMS set switch pressed | 187.61—191.39 |
| All switches released | 1139.99—1163.01 |
1. Remove the TPMS set switch. (See TIRE PRESSURE MONITORING SYSTEM SET SWITCH REMOVAL/INSTALLATION.)
2. Verify that the resistance between the TPMS set switch terminals B and C is as indicated in the table.
If not as indicated in the table, replace the TPMS set switch.

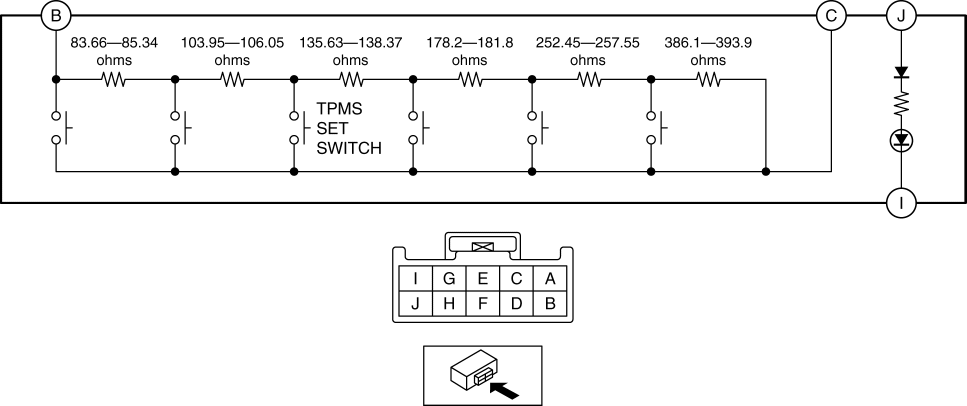

TPMS set switch specification
Terminal
Test condition
Resistance (ohms)
B—C
TPMS set switch pressed
187.61—191.39
All switches released
1139.99—1163.01
3. Apply battery voltage to TPMS set switch terminal J, and connect terminal I to ground.
4. Verify that the LED illuminates.
If there is any malfunction, replace the TPMS set switch.
