2014 - Mazda6 - Engine

VEHICLE CONTROL MODULE (V/C-MODULE) INSPECTION [MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM]

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)
2. Remove the following parts:
a. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
b. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
3. Connect the negative battery cable.

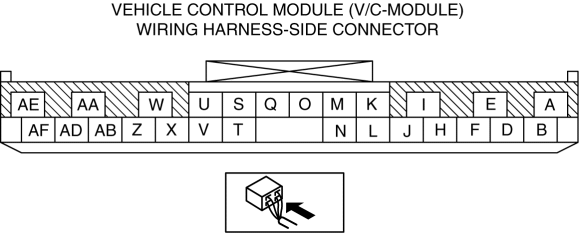

4. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

Terminal Voltage Table (Reference)



Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

A

IG1

  • IG1 relay

  • C/U IG1 15 A fuse

Switch the ignition ON (engine off or on)

B+

  • IG1 relay

  • C/U IG1 15 A fuse

  • Related wiring harness

Switch the ignition off (LOCK)

1.0 or less

B

D

E

F

H

I

J

K

L

M

N

O

Q

S

CAN_H

CAN related module

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

T

U

CAN_L

CAN related module

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

V

W

X

Z

AA

AB

CAN_H

Radar sensor

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

AD

CAN_L

Radar sensor

Because this terminal is for communication, integrity determination by terminal voltage is not possible.

AE

GND

Body ground

Under any condition

1.0 or less

Related wiring harness

AF
