2014 - Mazda6 - Engine

CANISTER VENT (CV) SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5]

U.S.A. And CANADA

Airflow inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)

2. Remove the CV solenoid valve. (See CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

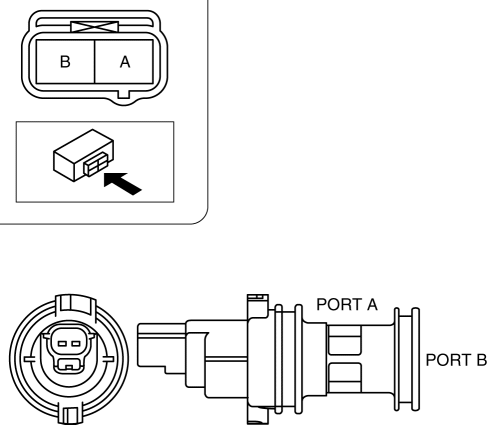

3. Inspect airflow between the ports under the following conditions.

Measured condition	Continuity between A—B
When voltage is not applied between terminals A and B	Airflow detected
When voltage is applied between terminals A and B	No airflow

• If not as specified, replace the CV solenoid valve. (See CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

• Should assume the voltage 12V (D.C.).

• Terminals A and B is nonpolar.
