2014 - Mazda6 - Engine

CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5]

U.S.A. And CANADA

1. Remove the breather pipe. (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

Except U.S.A. And CANADA

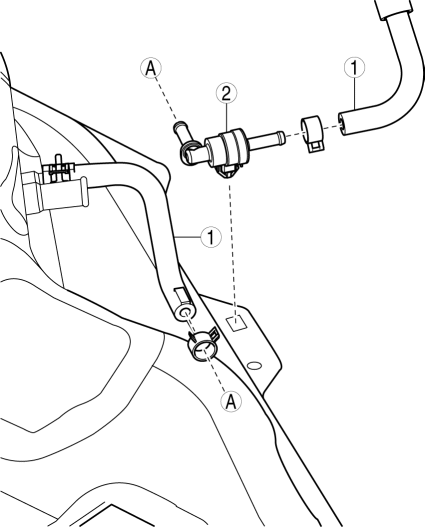

1. Remove in the order indicated in the table.



1

Evaporative hose

2

Check valve

2. Install in the reverse order of removal.
