2014 - Mazda6 - Engine

CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5]

U.S.A. And CANADA

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)

2. Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Charcoal canister removal note

1. Remove the following parts as shown in the figure.

• Charcoal canister

• Charcoal canister bracket

• Wiring harness

• Evaporative hose No.3

• CV solenoid valve

2. Remove the charcoal canister.

Evaporative hose No.3 installation note

1. Install the evaporative hose No.3 as shown in the figure.

Body side

Fuel tank pressure sensor side

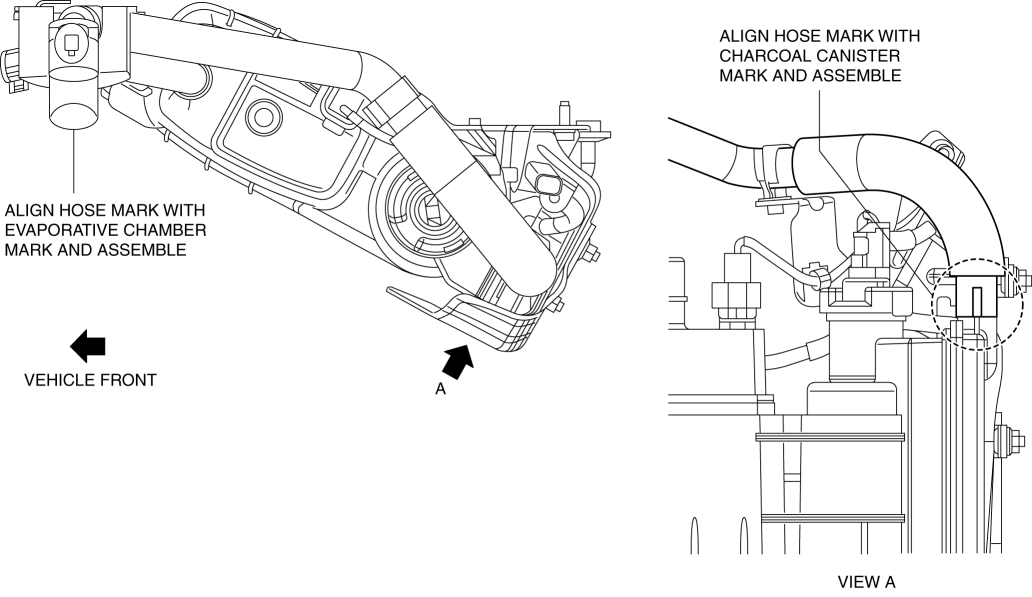

Evaporative hose No.2 installation note

1. Install the evaporative hose No.2 as shown in the figure.

Evaporative hose No.1 installation note

1. Install the evaporative hose No.1 as shown in the figure.

Except U.S.A. And CANADA

1. Remove in the order indicated in the table.

1	Evaporative hose No.1
2	Evaporative hose No.2
3	Evaporative hose No.3
4	Charcoal canister (See Charcoal canister removal note.)
5	Charcoal canister bracket

2. Install in the reverse order of removal.

Charcoal canister removal note

1. Remove the charcoal canister and charcoal canister bracket as a single unit.

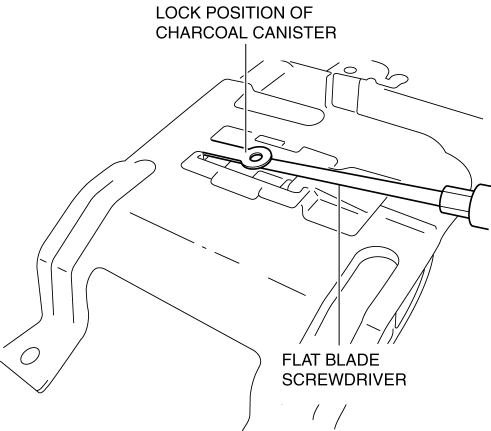

2. Release the lock as shown in the figure.

3. Remove the charcoal canister.
